Yubikey hardware token

Adding the yubikey as a MFA for Umu-id

Note: First install the Yubico Authenticator application before reading these instructions

Open http://aka.ms/mfasetup in a browser

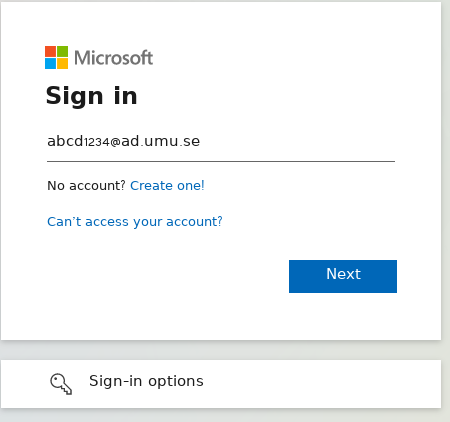

Enter your umu-id@ad.umu.se as the Sign In username

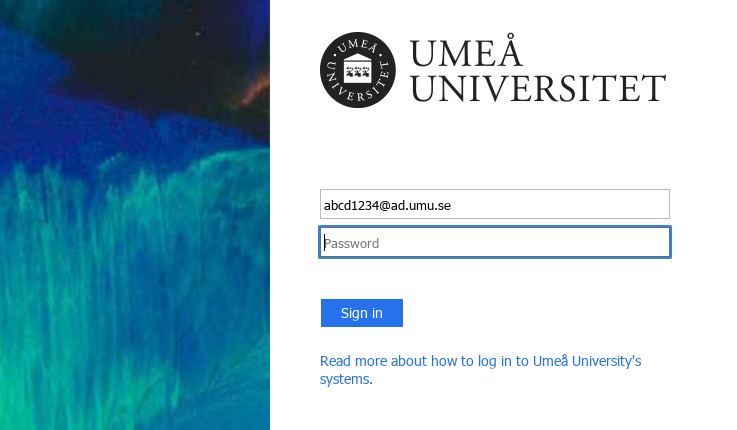

You'll be redirected the regular Umu-id authentication page

Login as normal

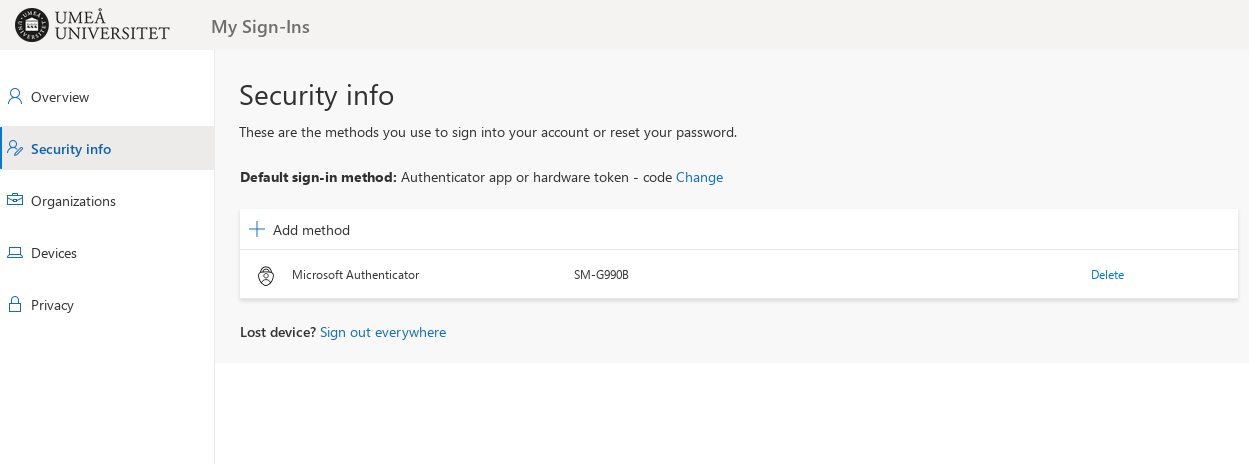

You'll now see a list of your MFA Devices.

Click Add method

It asks you to select an authentication method, currently only Authenticator app is supported

Select Authenticator app and click Next

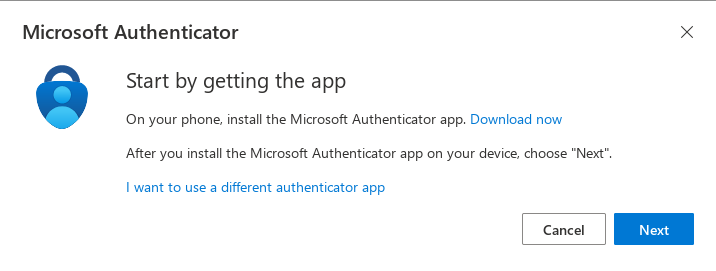

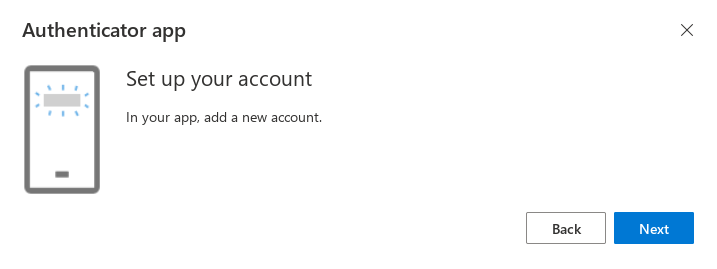

The default is to use the Microsoft Authenticator app on your phone, but we're adding a generic TOTP device

Click I want to use a different authenticator app

Click Next

Start the Yubico Authenticator application on your computer
Plugin your Yubikey into a USB-port if you've not already done so

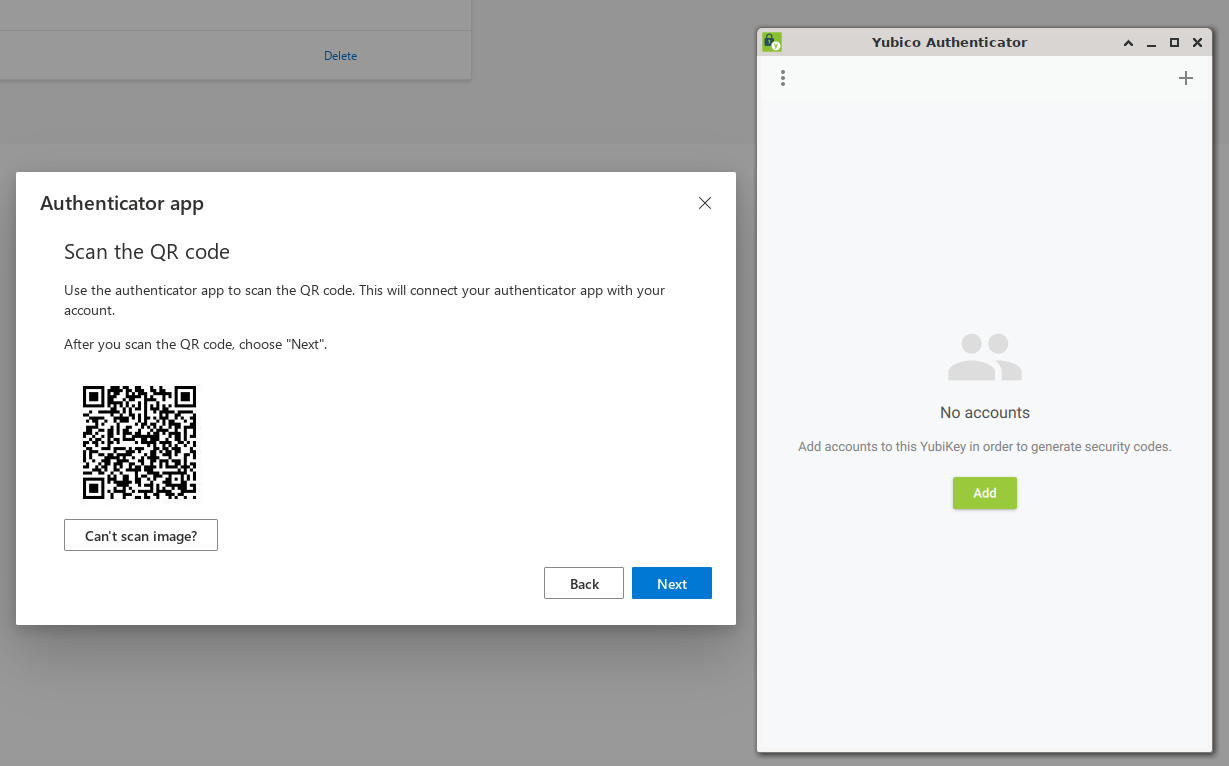

Place the Yubico Authenticator window so that it does not cover the QR-code in the browser

Click Add in the app

⚠️ QR-scanning troubleshooting ⚠️

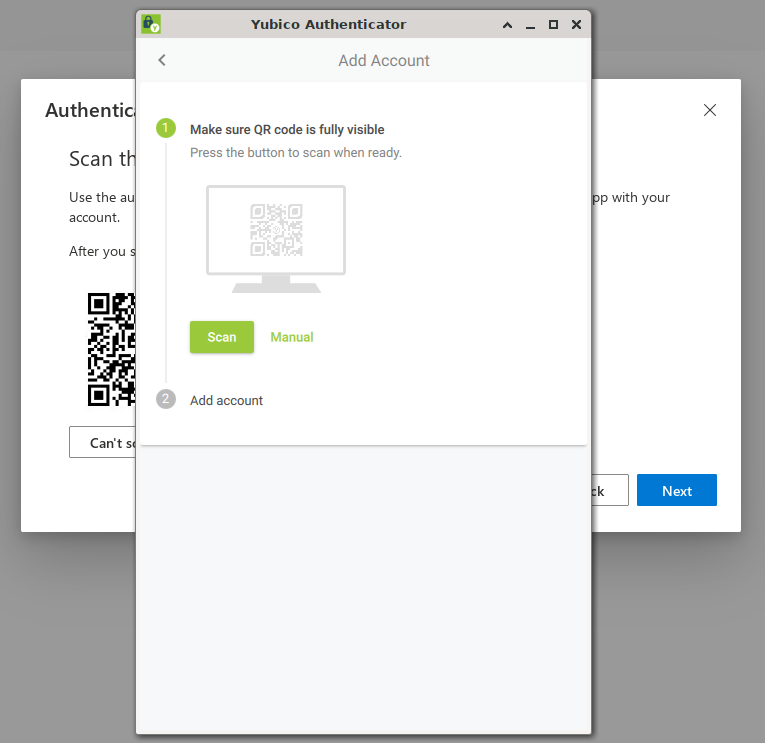

If you covered the QR-code the Yubico Authenticator will prompt you reposition the window so that the QR-code is not covered, and click Scan to make it re-scan the screen for a QR-code

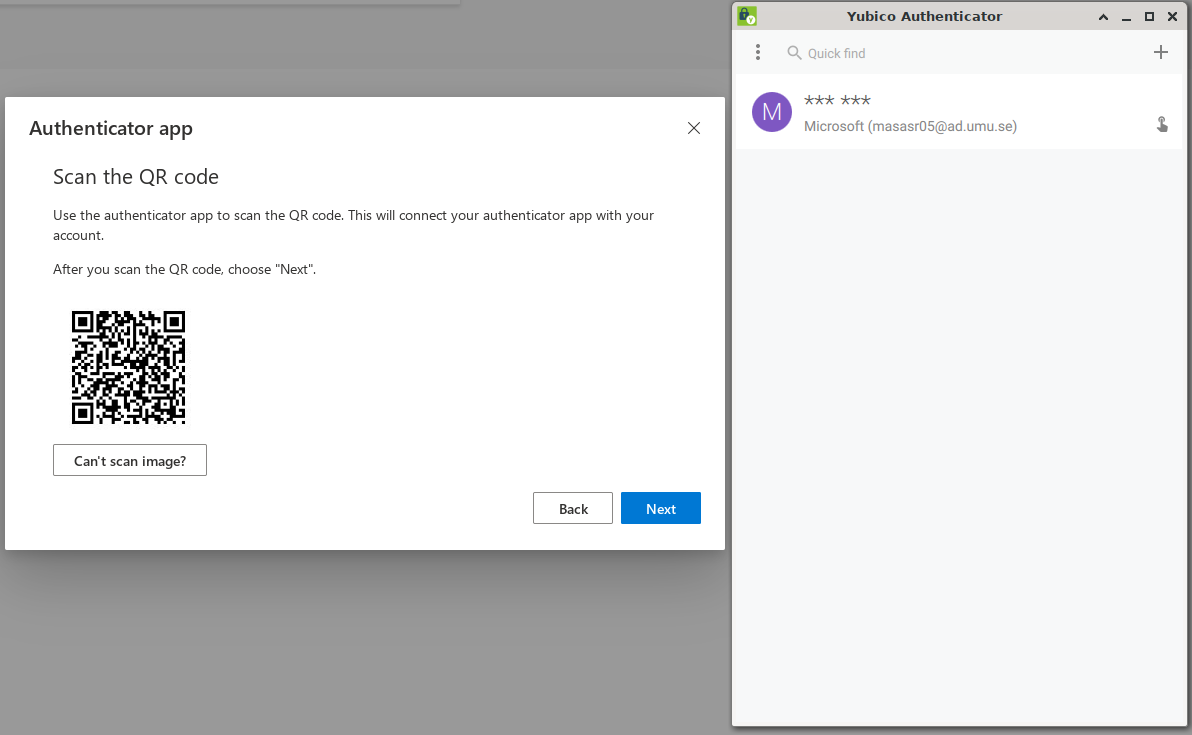

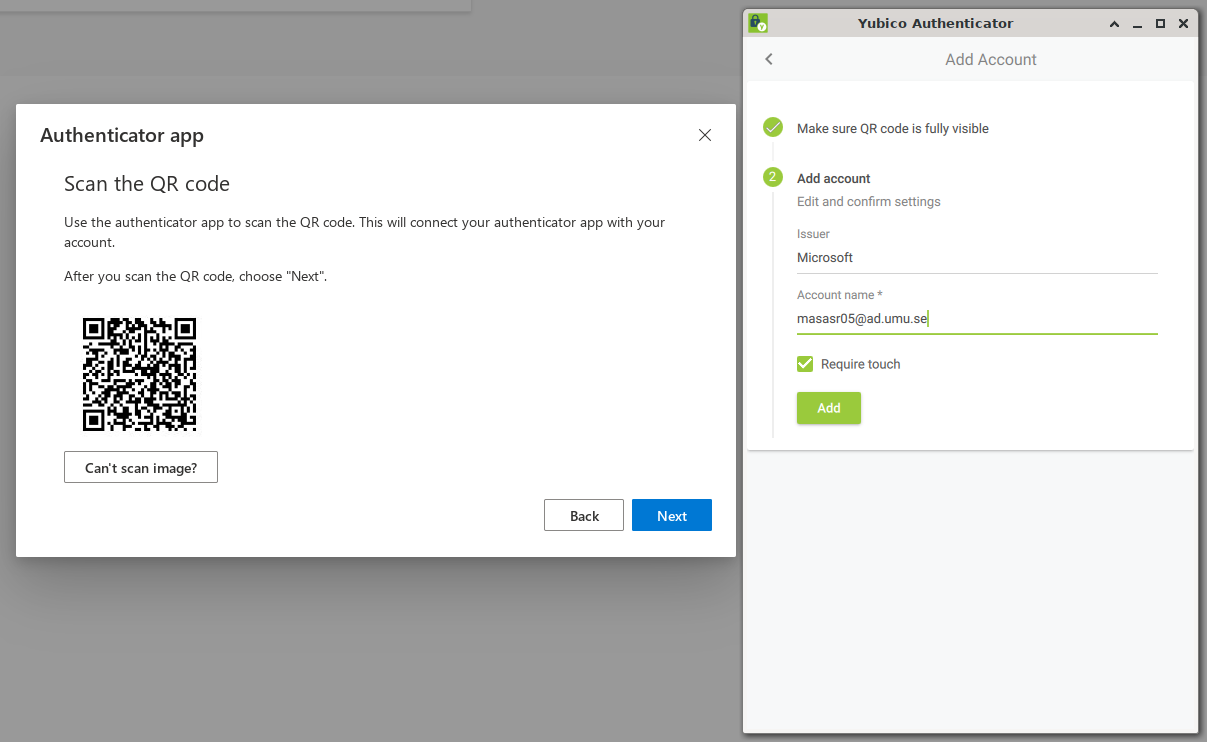

The Yubico Authenticator will scan the QR-code and present Issuer and Account Name, which should be Microsoft and your Umu-id@ad.umu.se respectively.

Important: Ensure that Require Touch is selected.
Click Add in the app

Click Next on the browser page

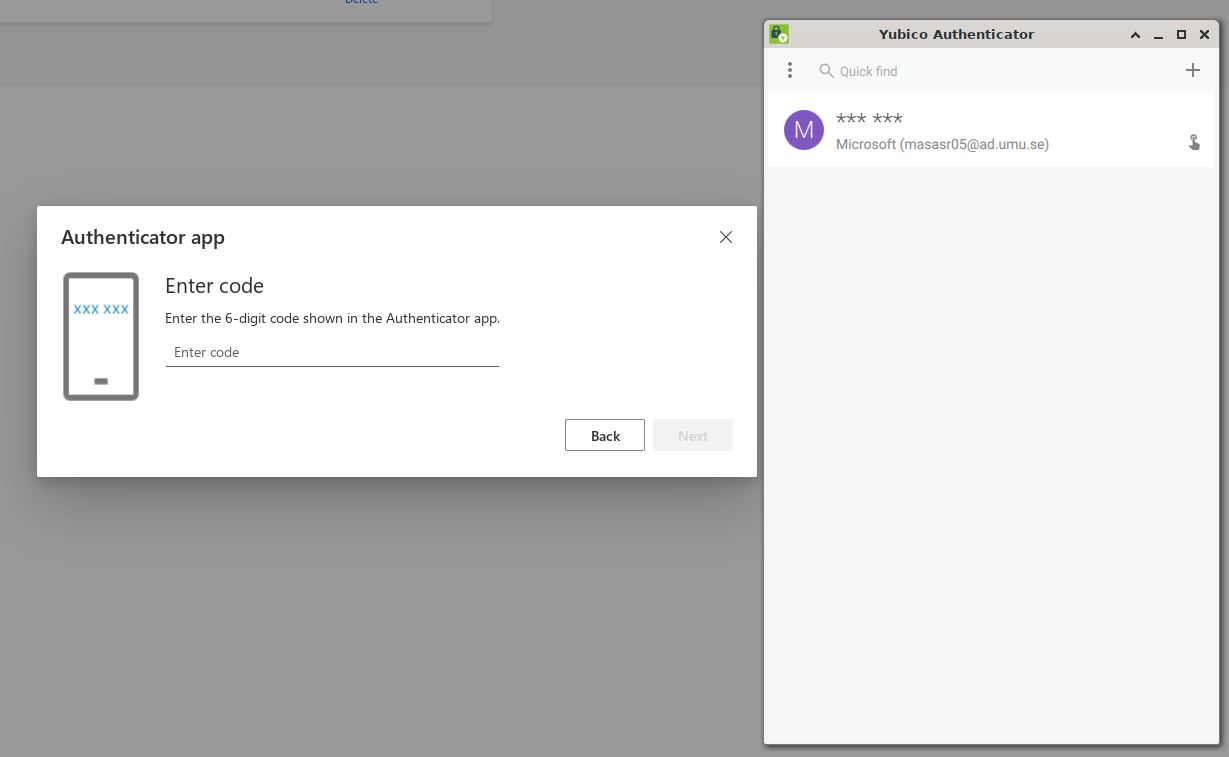

To verify that you've added the MFA device successfully it now prompts you to enter the OTP code.

Double-click on the @ad.umu.se account in the app

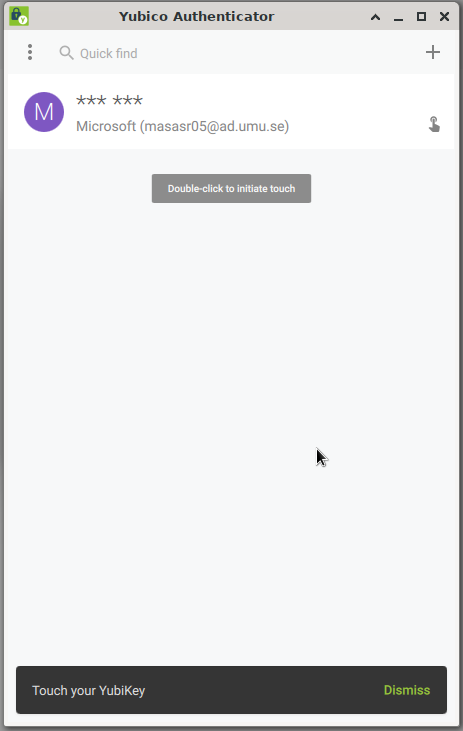

It prompts you to touch the metal part of the Yubikey device to verify that you want to generate an OTP code.

Physically touch the metal part of the yubikey device to verify that you want to display the OTP code

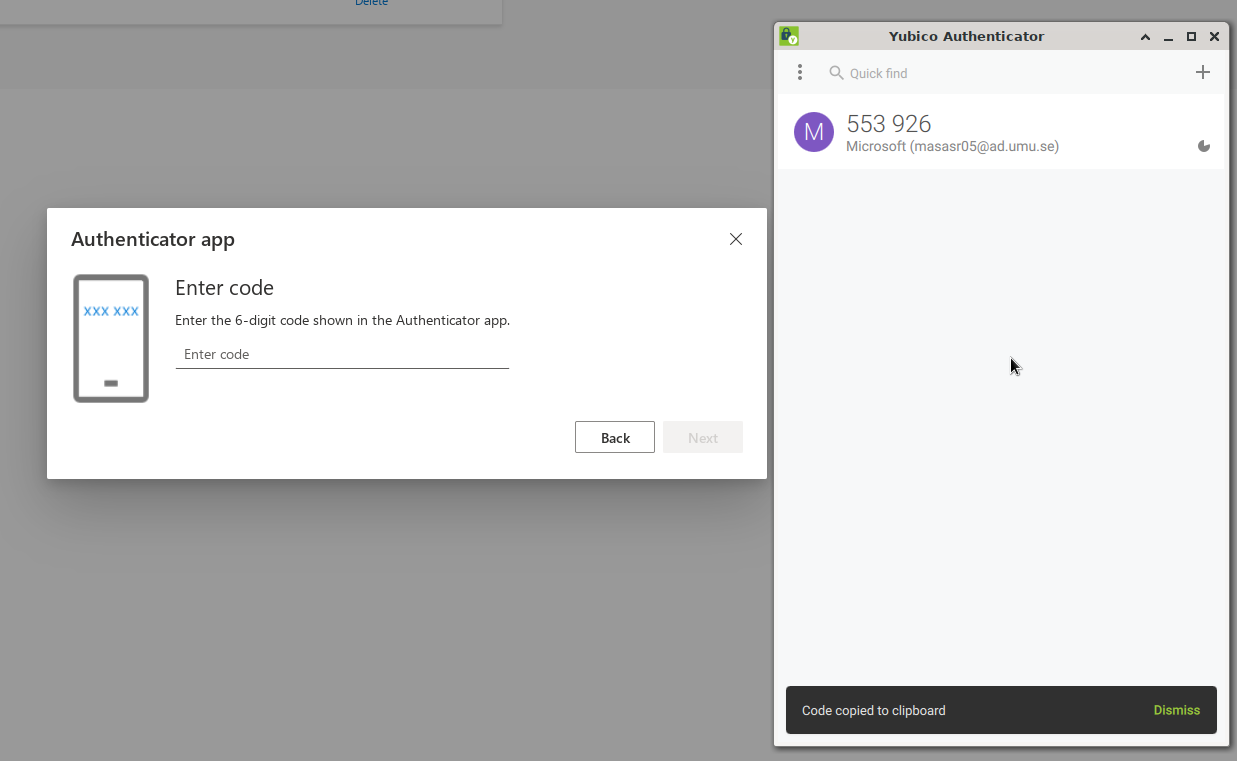

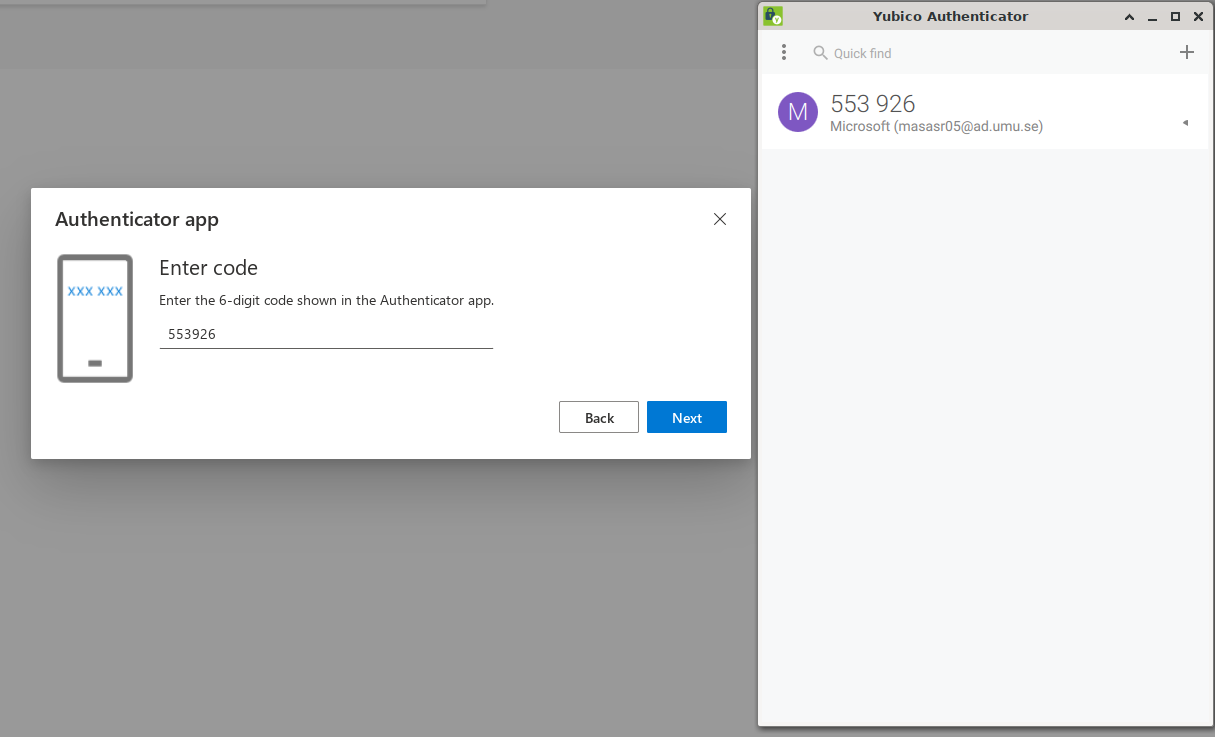

The OTP code will be displayed in the app, and automatically copied to your clipboard

Paste or type the OTP code in the Enter code field

Click Next

Note: A OTP-code is typically valid for about 30 seconds. So if you wait to long between creating the OTP-code and using it, it may have expired. If so, double click in the app again and touch the yubikey to generate a new fresh OTP-code

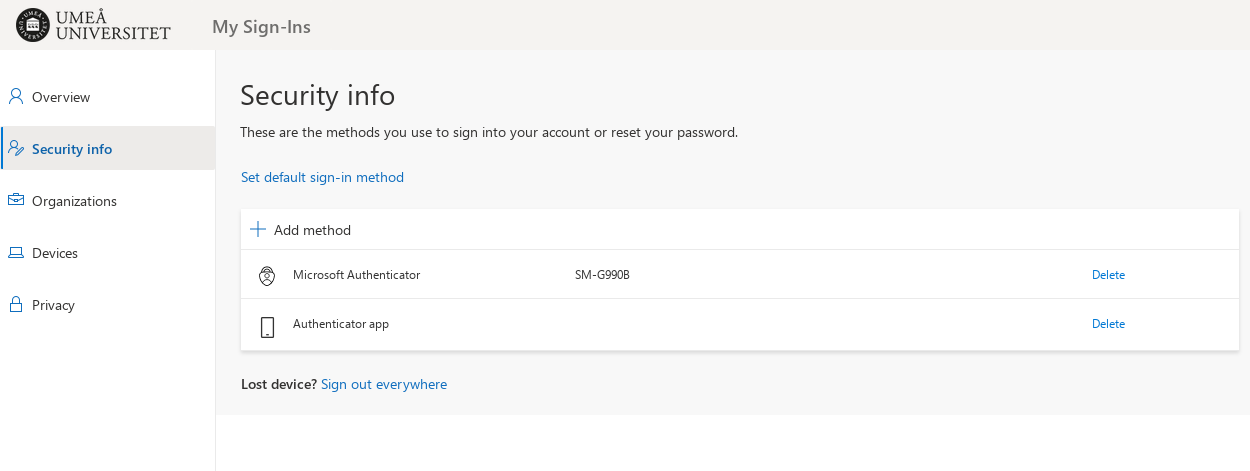

Success. Your yubikey is now listed among your MFA devices (The generic Authenticator app in the image).
